Drain Tile Installation Vancouver
A properly installed drain tile system collects groundwater around the foundation and provides a controlled path for water to drain away from the building.
Vancouver Underground Drainage Experts provides drain tile installation and replacement throughout Greater Vancouver. We install new perimeter drainage systems, replace failing drain tile and upgrade older drainage around homes, strata and commercial properties.
Whether you are putting in drain tile where adequate foundation drainage does not currently exist or replacing an older system that has deteriorated, the installation needs to account for the foundation, groundwater, pipe placement, drainage material and where the collected water will discharge.
Drain Tile Installation for Greater Vancouver Properties
Drain tile is an underground drainage system installed around the exterior foundation of a building. It collects water from the surrounding soil and directs it toward an appropriate drainage outlet or sump system.
A complete drain tile installation involves much more than simply burying perforated pipe. The excavation depth, pipe position, drainage rock, filtration, connections and discharge route all affect how the finished system manages groundwater.
How a Drain Tile System Is Installed

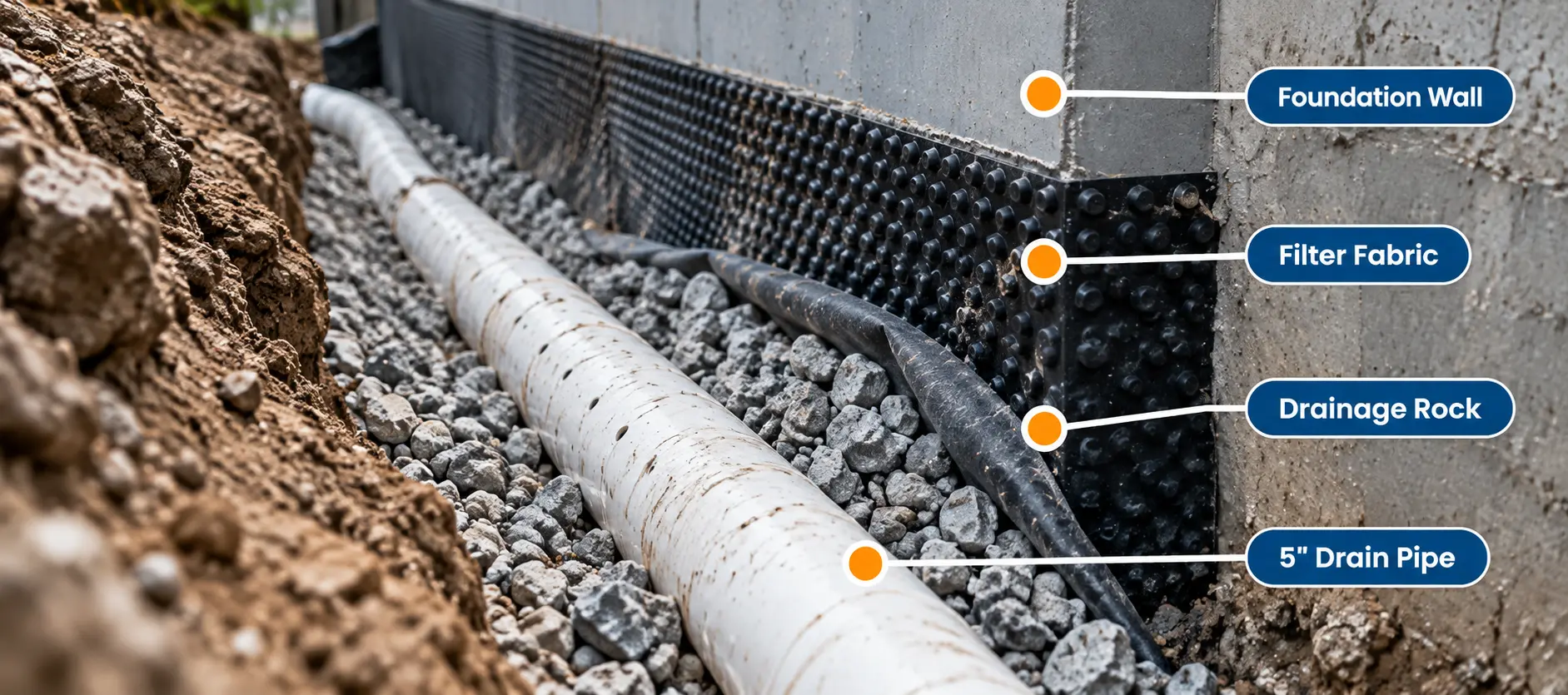

A drain tile system works as a combination of perforated drainage pipe, drainage rock, filtration, proper connections and a suitable outlet or sump. These components need to be installed in the correct order around the foundation so groundwater can enter the system and move away from the building.

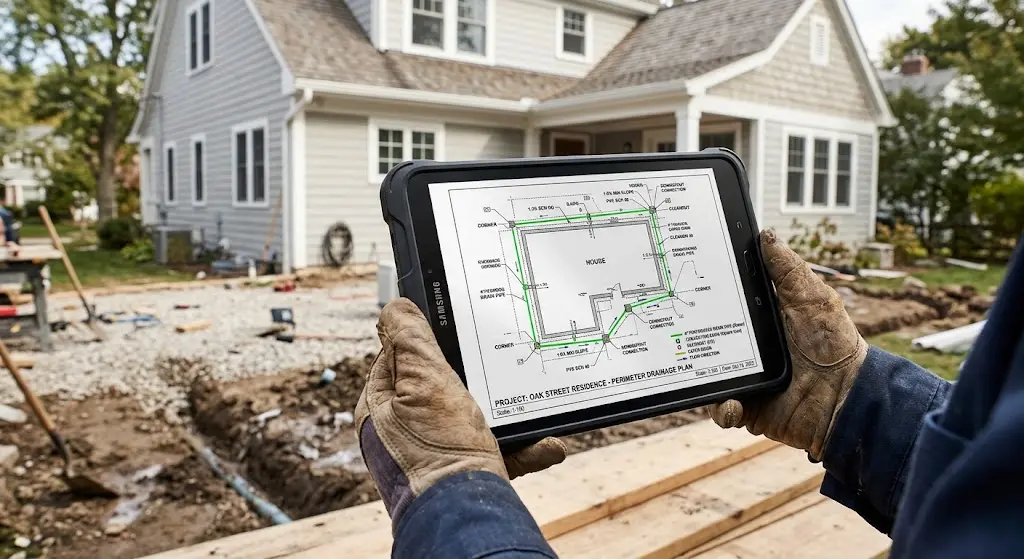

Assess & Plan the Drainage
We review the foundation, existing drainage, site conditions and available discharge points to determine where the new drain tile needs to run and how it will discharge.

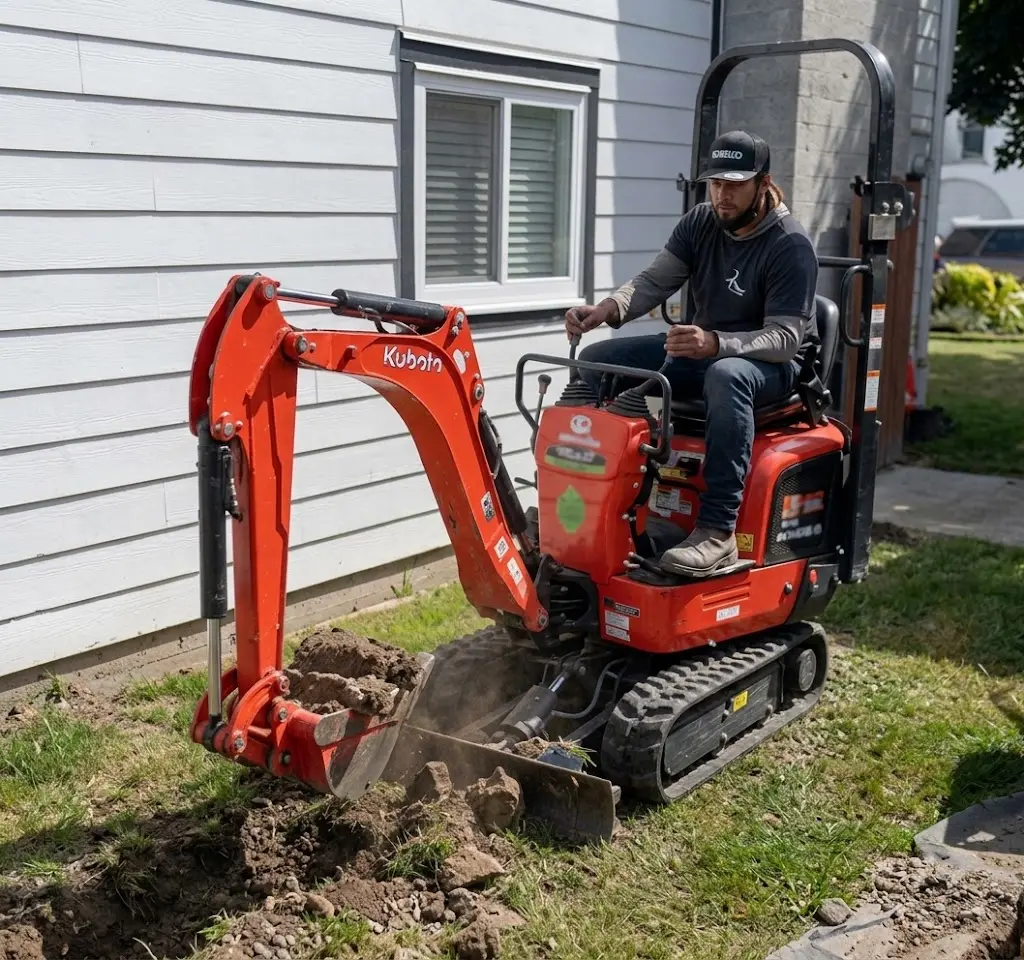

Excavate Around the Foundation
The ground is excavated to the depth required for the drainage system. Foundation depth, access, landscaping and hard surfaces can affect how the excavation is completed.
Prepare the Drainage Bed
The base of the excavation is prepared with clean drainage rock to create a permeable drainage zone around the foundation.

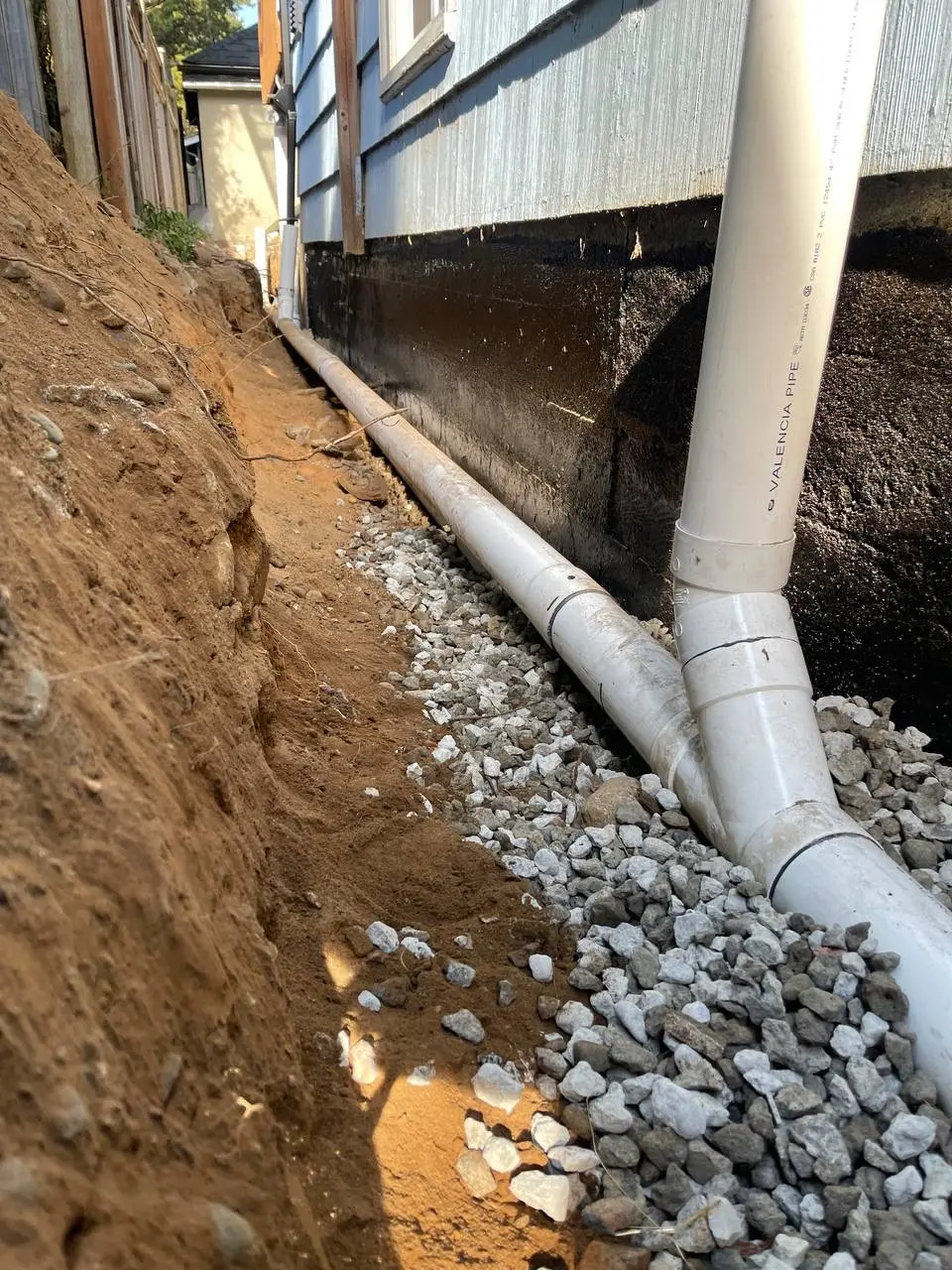

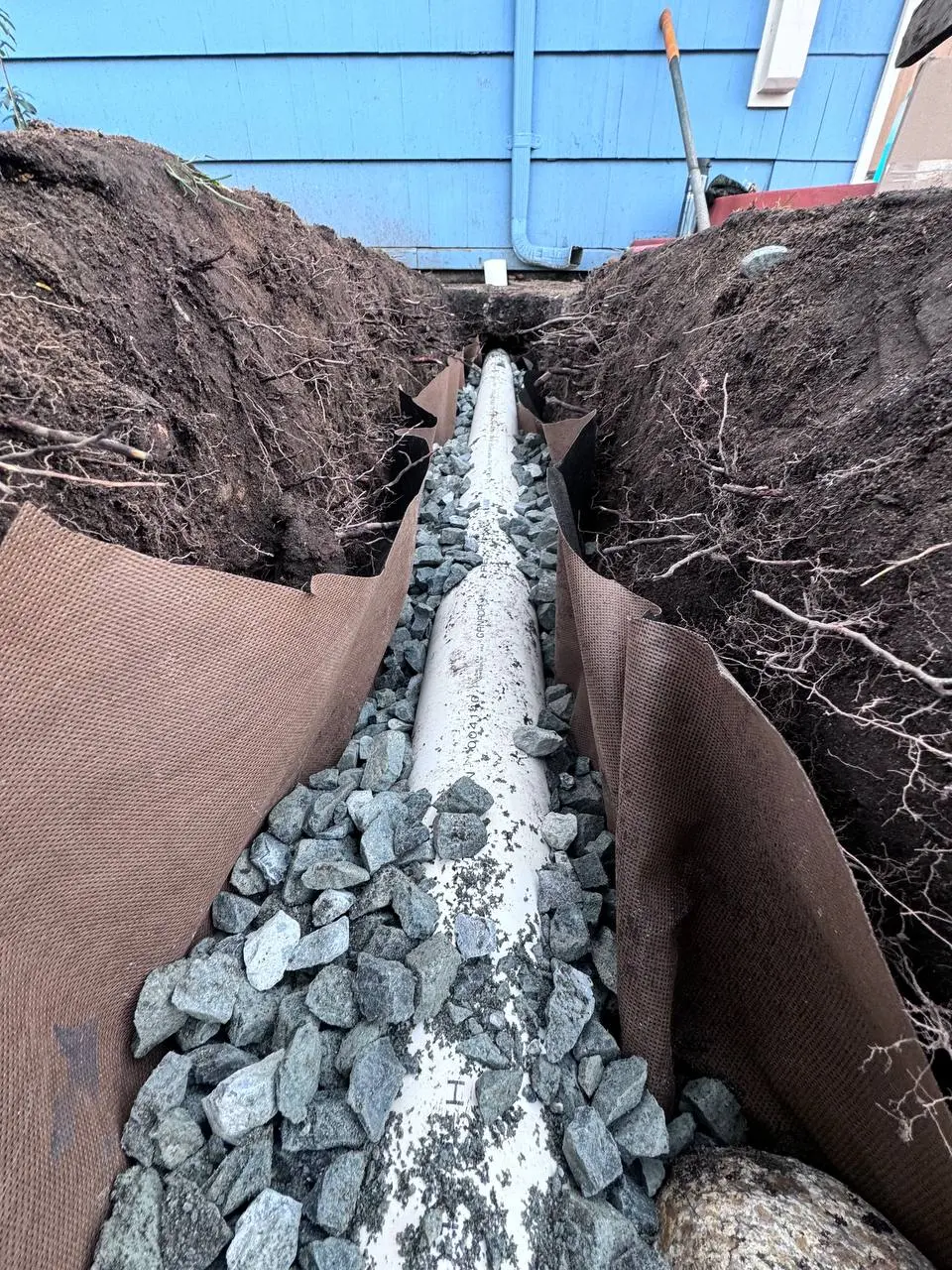

Install the Drain Tile
The perforated drain pipe is installed around the required sections of the foundation. Putting in drain tile correctly requires attention to pipe elevation, positioning and connections.

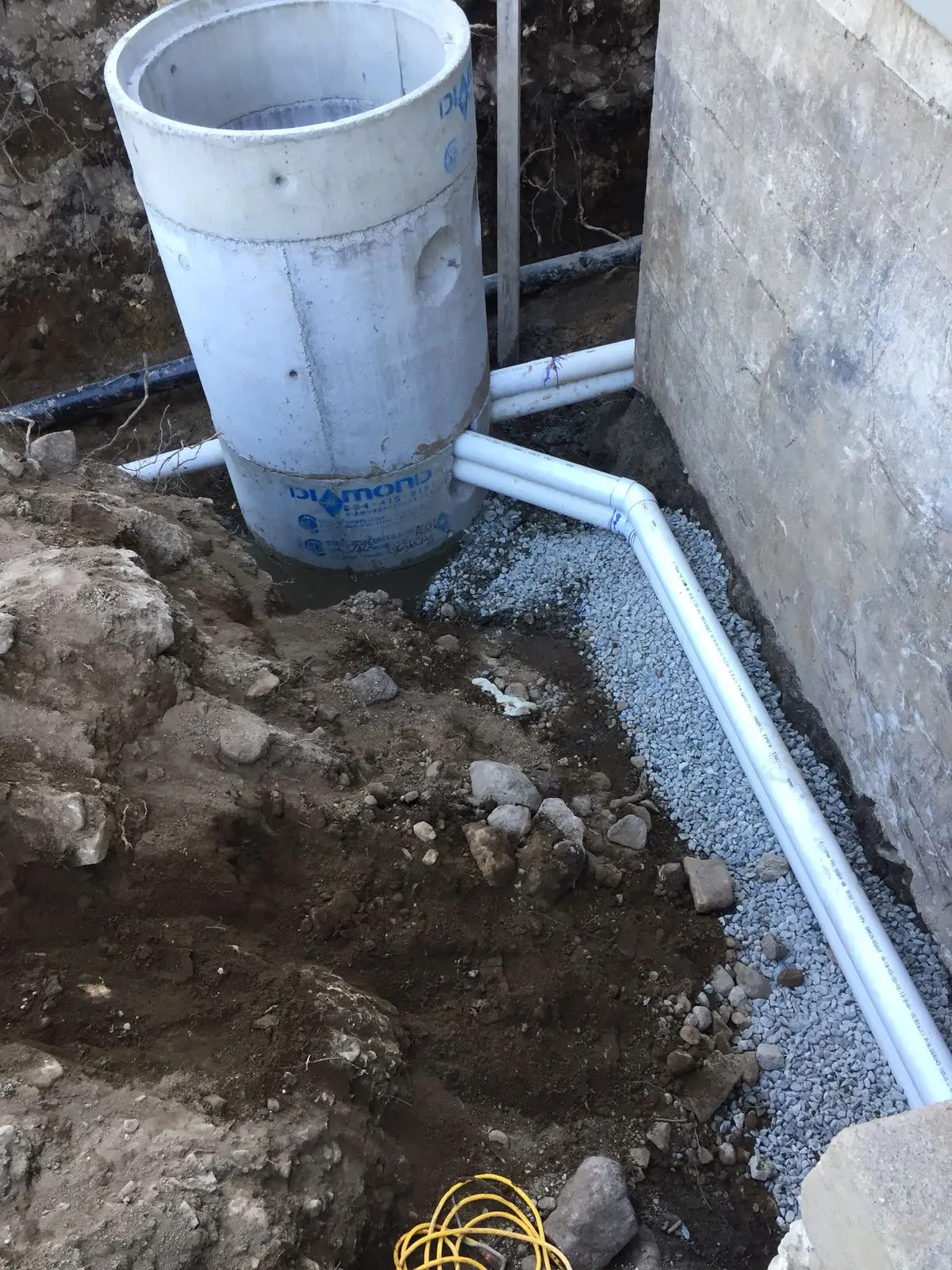

Connect the Drainage System
Individual sections are connected into a continuous drainage route and directed toward the property's appropriate outlet, sump or other drainage configuration.

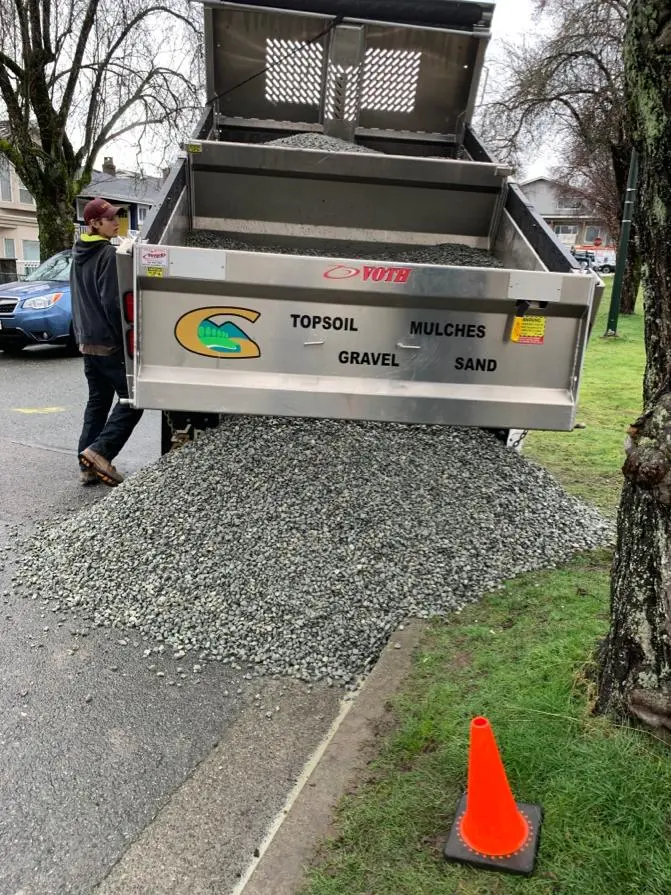

Backfill & Restore
Once the drainage system is complete, the excavation is backfilled. Restoration requirements depend on what was removed to access the foundation and what is included in the project scope.
Drain Pipe
Rock
Fabric
Connections
or Sump
Drain Tile Replacement Vancouver
Many Greater Vancouver properties already have perimeter drainage but eventually reach a point where the existing system is no longer providing dependable drainage around the foundation.
In these situations, the old drain tile can be excavated and replaced with a new drainage system.
Crushed Sections
Separated Drain Tiles
Deterioration
Root Intrusion
with Soil or Sediment
Connections

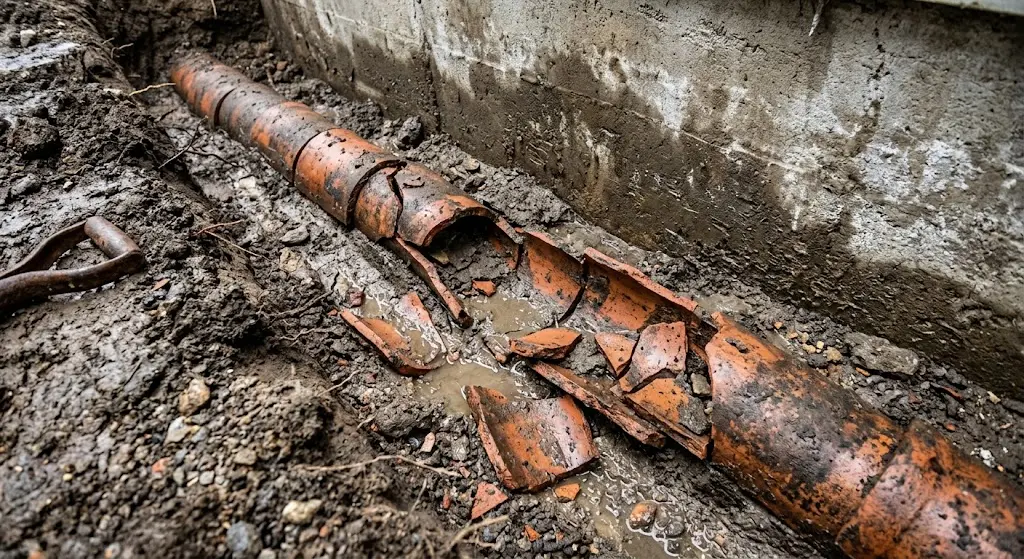

Replacing Older Clay Drain Tile
Older homes throughout Greater Vancouver may have sectional clay drain tile around the foundation.
Clay drainage was installed using individual sections rather than long continuous runs of modern drainage pipe. This creates numerous joints throughout the system.
Older Clay Drain Tile
Modern Drainage
Does Your Drain Tile Need Replacement?
The extent of the damage, the condition of the existing drainage and your overall project scope will help determine whether cleaning, repair or replacement is the most appropriate solution.
Recurring Blockages
May point to buildup, roots or another obstruction.
One Damaged Section
Could potentially be handled with localized repair.
Multiple Damaged Sections
Replacement becomes more practical as failures spread.
Collapsed or Severely Deteriorated Drainage
Cleaning cannot restore the physical pipe.
Major Foundation Excavation Already Required
If the foundation is already exposed, replacing deteriorated drainage may be more practical at the same time.
A drain camera inspection can help identify the condition of your existing drain tile.
Inspecting Drain Tile Before Replacement
We do not want to recommend replacing an underground drainage system simply because a property has water or drainage problems.
When the existing drain tile is accessible, a drain camera inspection can provide information about what is happening inside the pipe.
What we find helps determine whether the appropriate next step is cleaning, root removal, localized repair or replacement.
Intrusion
Sediment
Joints
Offset Sections
Drain Tile
Sections
Physical Deterioration

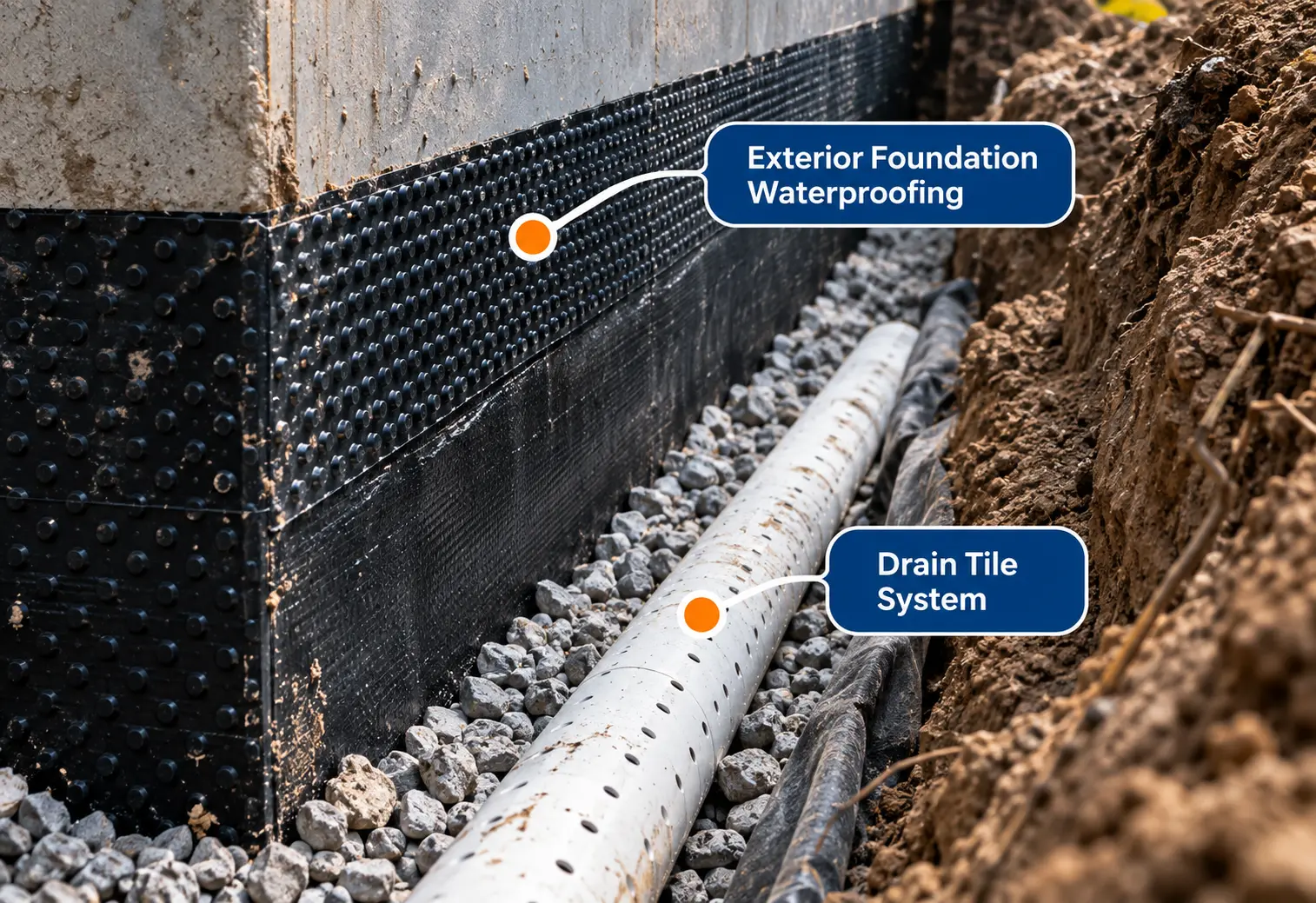

Drain Tile Installation & Foundation Waterproofing
Drain tile and foundation waterproofing are different systems that work together to manage water around a foundation.
Drain tile collects groundwater around the base of the foundation and provides a route for that water to drain away.
Exterior foundation waterproofing protects the below-grade foundation wall against water entering through the wall itself.
Drain Tile Installation, Cleaning or Repair?
Not every drainage problem requires a new drain tile system. The condition of the existing drainage and the extent of the problem help determine the most appropriate solution.
Drain Tile Installation & Replacement
Used when new foundation drainage is required or when an existing system has widespread physical deterioration that cannot reasonably be restored through cleaning or localized repairs.
Drain Tile Cleaning
If the pipe remains structurally usable but is restricted by mud, sediment or other removable material, cleaning may restore drainage without replacement.
Drain Root Removal
Roots that have entered accessible drainage may be mechanically removed when the surrounding drain tile remains suitable for the procedure.
Drain Tile Repair
When damage is limited to a particular section, it may be possible to excavate and repair that area rather than replace the entire perimeter drainage system.
What Affects Drain Tile Installation Cost?
The cost of drain tile installation in Vancouver depends heavily on the excavation and property conditions. Two homes of similar size can require very different amounts of work.
Length of Drain Tile
Installing drainage around an entire foundation requires more excavation, pipe and drainage material than a shorter section.
Foundation Depth
Deeper foundations generally require deeper excavation and additional soil handling.
Access for Excavation Equipment
Good machine access is very different from narrow side yards or areas that require smaller equipment and hand excavation.
Concrete, Patios & Landscaping
Sidewalks, driveways, patios, decks, retaining features and established landscaping can affect both access and restoration.
Existing Drainage
A replacement project may involve removing old drain tiles, dealing with failed connections and integrating the new system with existing drainage.
Foundation Waterproofing
If waterproofing is being completed while the foundation is exposed, that work becomes part of the overall excavation project.
Drainage Outlet or Sump Requirements
Where the drain tile discharges and how that connection needs to be made can affect the installation.
Drain Tile Installation for Homes, Strata & Commercial Properties
We install and replace underground foundation drainage for properties throughout Greater Vancouver.
Residential Drain Tile Installation
New drain tile systems, replacement of aging perimeter drainage and drainage installed alongside foundation or waterproofing work.
Strata Drain Tile Installation
Drainage installation and replacement around multi-unit buildings and common property where aging perimeter drainage is contributing to water-management problems.
Commercial Drain Tile Installation
Exterior foundation drainage systems for commercial buildings where groundwater needs to be collected and directed away from the foundation.
Ricardo Quintana — 20+ Years Experience
Ricardo has more than 20 years of experience working on larger drainage, excavation and landscaping projects and works with a crew capable of handling larger drainage scopes throughout Greater Vancouver.
Underground Drainage Experience Matters
Drain tile becomes difficult to access once excavation is backfilled and the property is restored. Proper diagnosis, planning and installation matter before the ground is closed again.
Underground Drainage Focus
Drain tile · Perimeter drains · Weeping tile · Sump systems
Repair Before Replacement When Appropriate
We assess whether cleaning, root removal or localized repair may solve the problem before recommending replacement.
Experience With Older Drainage
Experience working with older clay tile, aging connections and modern drainage systems.
Larger Excavation Capability
Equipment and crew available for larger perimeter drainage projects.
What Our Customers Are Saying
“excellent service to fix my sinkhole”
The customer highlighted the team's clear explanation of the work, reasonable pricing and successful repair of the backyard drainage problem.
“communication was excellent, and the team was polite”
After recurring yard pooling, the team identified missing drainage, installed new drainage and connected it into the existing system.
“everything has been working smoothly”
The project included adding a gravity sump and cleaning the property's clay drain tile, along with solutions for easier future maintenance.
“very pleased with the work”
The project included excavation, foundation repairs, waterproofing, a new two-pipe drainage system and a new sump.
Drain Tile Installation Throughout Greater Vancouver
We provide drain tile installation and replacement for residential, strata and commercial properties throughout Greater Vancouver.
1477 W 15th Ave, Vancouver, BC
Frequently Asked Questions
Answers to common questions about drain tile, Big O pipe, installation, replacement and foundation drainage in Greater Vancouver.
What do drain tiles look like?
Modern drain tile usually looks like perforated drainage pipe installed beside the foundation and surrounded by clean drainage rock. Older Greater Vancouver homes may have short sections of clay drain tile instead of modern continuous plastic pipe.
How common is tile drainage in Vancouver?
Foundation drainage is very common around homes in Greater Vancouver. Older properties may have clay tile or older corrugated drainage, while newer systems typically use approved modern drainage pipe. The exact system depends on the age and construction of the property.
What is a Big O pipe?
Big O is a type of corrugated drainage pipe commonly used for underground drainage. Perforated versions allow groundwater to enter the pipe, while solid versions are used to carry water from one point to another.
Do you need drain rock under Big O or drain tile?
Drain tile is normally installed as part of a drainage zone rather than buried directly in soil. Clean drainage rock allows groundwater to move toward the pipe, while filter protection may help reduce fine soil entering the drainage material. The exact installation depends on the property and drainage design.
How deep should Big O pipe be in Vancouver?
There is no single depth that applies to every property. Foundation drainage is positioned according to the footing, foundation depth, floor level and drainage design. A deeper foundation generally requires deeper excavation and drainage installation.
What is the difference between perimeter drainage, drain tile, weeping tile and a French drain?
Perimeter drain, drain tile and weeping tile are commonly used to describe foundation drainage installed around the exterior of a building. A French drain is usually a gravel-filled trench containing perforated pipe that intercepts and redirects groundwater or surface water from another area of the property.
How do I know whether I need new drain tile or just cleaning?
It depends on the condition of the pipe. Mud, sediment and some root intrusion may sometimes be removable when the drainage remains structurally usable. Crushed, collapsed or extensively deteriorated drainage may require repair or replacement.
Can old clay drain tile be repaired instead of replaced?
Sometimes. Old clay drainage does not automatically need full replacement simply because of its age. If damage is limited to one area, localized repair may be possible. Replacement becomes more relevant when deterioration affects a substantial portion of the system.
Should drain tile be camera inspected before replacement?
When suitable access exists, a camera inspection can help identify roots, sediment, open joints, offsets, cracks and collapsed sections before deciding whether cleaning, localized repair or replacement is appropriate. Learn about drain camera inspection →
Does drain tile installation include foundation waterproofing?
Not automatically. Drain tile manages groundwater around the base of the foundation, while exterior foundation waterproofing protects the below-grade wall itself. Because both systems are accessed during excavation, it can make sense to assess the waterproofing while the foundation is exposed. Learn about foundation waterproofing →
How long does drain tile installation take?
The schedule depends on the length of drainage being installed, excavation depth, equipment access, concrete or landscaping that must be removed and the restoration required afterward. A short accessible section can take much less time than a full perimeter replacement.
How much does drain tile installation cost in Vancouver?
There is no reliable single price for every property because excavation conditions can vary significantly. Cost is affected by the length and depth of excavation, machine access, existing surfaces, old drainage removal, waterproofing and the required outlet or sump connection.
Can drain tile be installed around only part of the foundation?
In some situations, yes. Partial installation may be appropriate for an addition, newly exposed foundation section or localized drainage problem. Whether this makes sense depends on how that section will connect into the property's overall drainage system.
Do downspouts connect directly into perimeter drain tile?
Roof water should not simply be connected into perforated foundation drainage without considering the overall drainage design. Some properties use separate solid piping for downspouts and perforated piping for groundwater so each source of water can be managed appropriately.
Can tree roots damage drain tile?
Yes. Roots can enter through open joints, cracks or damaged sections, especially in older sectional clay drainage. Root cutting may remove the obstruction, but damaged pipe may still need repair. Learn about drain root removal →
What happens to my yard after drain tile installation?
The excavation is backfilled after the drainage system is completed. Restoration depends on what had to be removed for access, such as lawn, landscaping, concrete, patios or other surfaces, and what is included in the project scope.
Need Drain Tile Installed or Replaced?
If you are planning a new drain tile installation or believe an existing perimeter drainage system may need replacement, send us the property address and tell us what is happening.
For existing drainage, we can help determine whether the condition points toward cleaning, repair or replacement before recommending a larger excavation project.
