I’m Alex, a drainage technician with Vancouver Underground Drainage Experts, serving Vancouver, North Van, West Van, Burnaby, Richmond, Coquitlam, Chilliwack, Surrey and the surrounding Lower Mainland. When I received a call from a busy commercial store in Burnaby about flooding at their back delivery zone, I understood immediately how serious it was. Water pooling in that area halts cleaning operations, disrupts deliveries, and creates a safety hazard. That is exactly why clients throughout Metro Vancouver rely on us for full‑scale drainage solutions.
In this blog I will guide you through each phase of the repair, from the initial camera inspection to a complete trench drain replacement, catch basin installation, and preventative maintenance advice. I will show not only how we fixed the problem, but why we are recognized as a leading water drainage company
1. Emergency Call: Back Door Flooding in Burnaby
It was early Monday morning when I arrived at the loading dock. The store manager said the area was holding several inches of water any time they rinsed the space clean.
I began with a camera inspection inside the drain channel. The footage revealed crushed concrete, packed debris, and gravel lodged deep in a channel that did not match the heavy commercial traffic load.

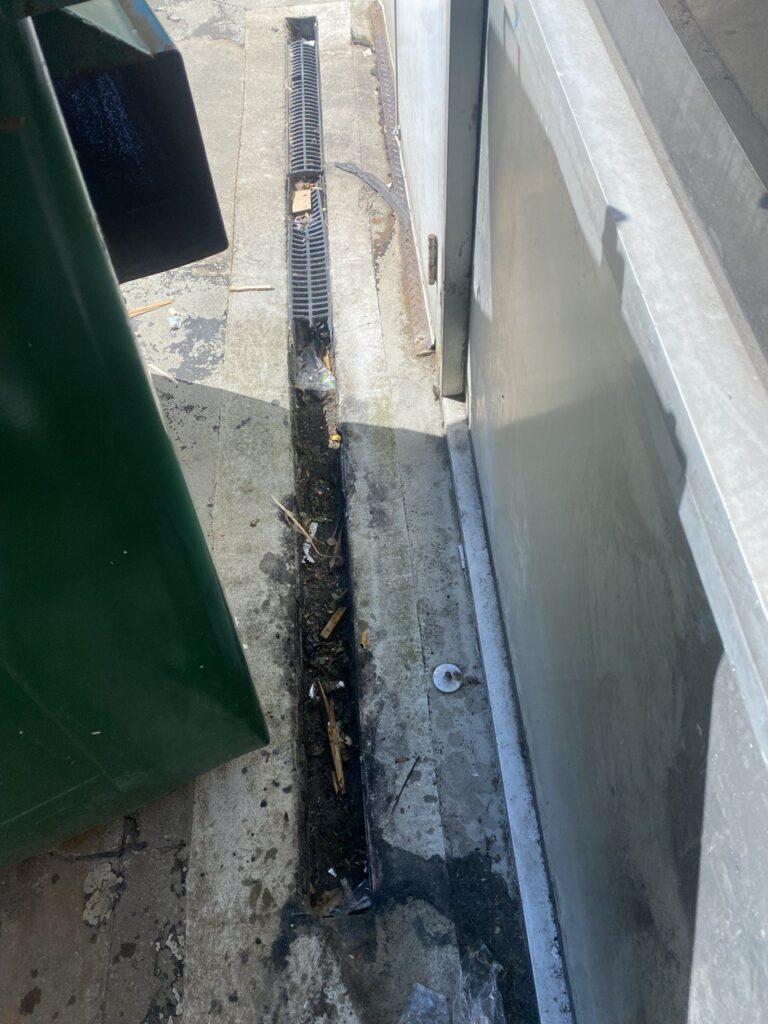

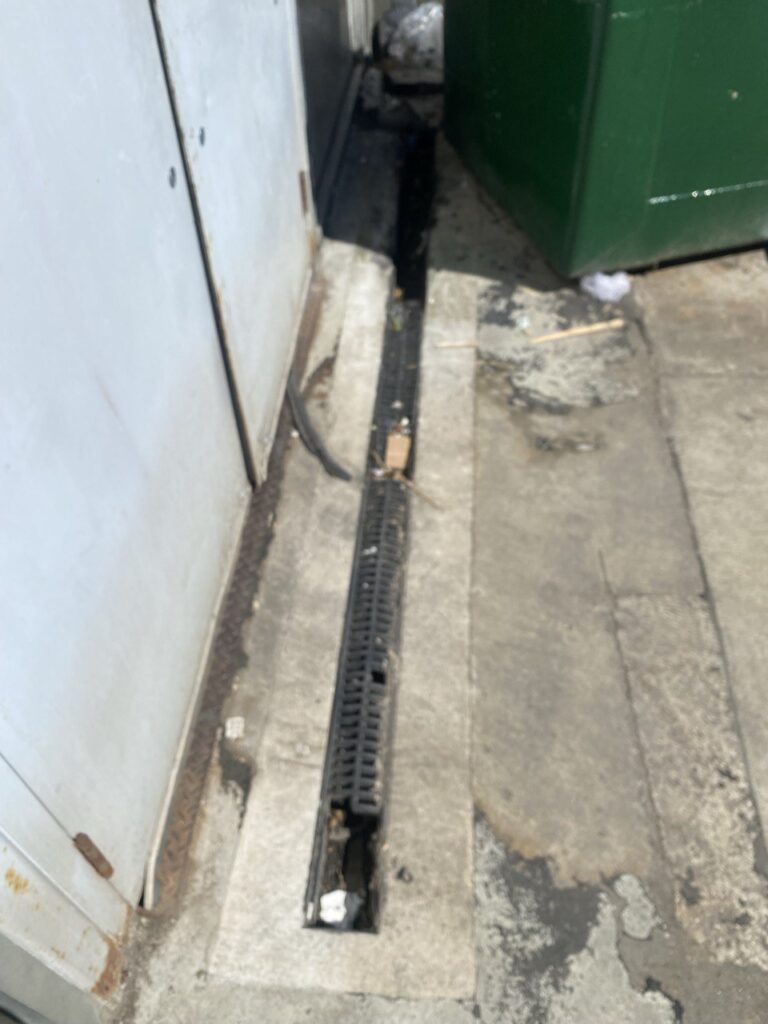

2. Clearing Debris and Initial Find
Next I removed the grate and manually cleared plastic wrappers, stones, and other foreign objects. I brought in a shop‑vac and a hydro pressure jet to flush the line. The system began draining water again. At that point I turned to inspect the concrete sump and saw extensive structural damage. Cracks in concrete meant the system no longer functioned safely. This was more than a clog; it was a failure that required replacement.
3. Diagnosing the Drain Failure
Here are the key reasons this channel drain failed:
- Original installation did not account for commercial trolley traffic
- It was undersized for the volume of water and debris
- Construction materials were not up to the task
- Repeated loading had caused the concrete to crack, allowing debris to enter
I explained the situation to the client in simple terms. We needed a modern trench drain replacement Burnaby system that would handle high use and harsh weather. Within minutes, the client approved full replacement.
4. Design

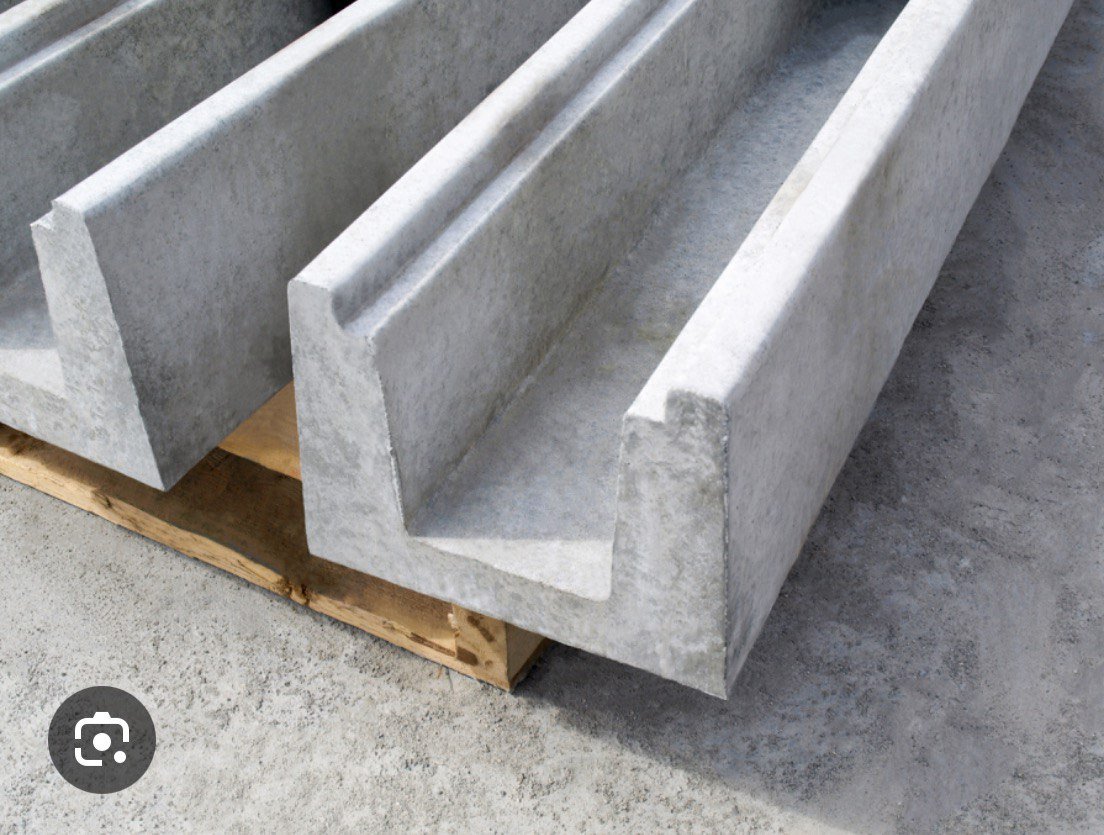

We designed a custom system using polymer concrete channel drain sections and reinforced steel grates. I included a new catch basin installation sized to handle peak flow.

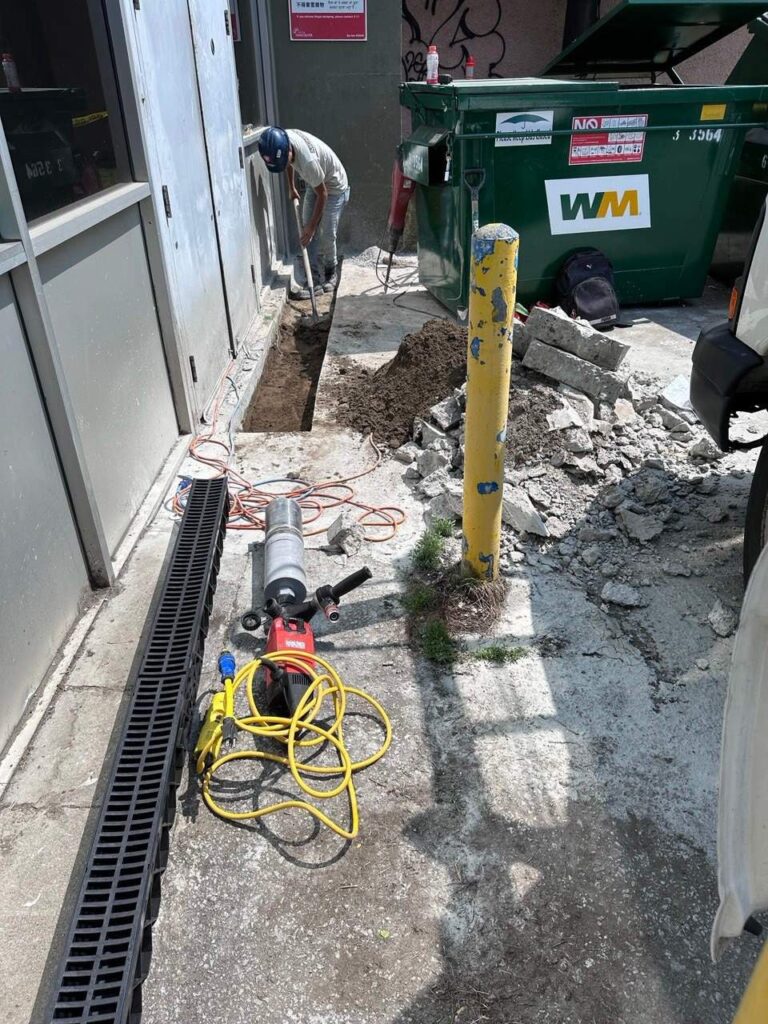

5. Demolition and Excavation
In demo day the steps were clear:
- Remove the old, corroded grate
- Jackhammer the old channel and surrounding concrete or asphalt
- Excavate to the correct depth with consistent slope away from the building
Lay a compacted gravel bed for the new system
This step is always noisy, gritty, and messy, but necessary to set a solid foundation for the new drain.

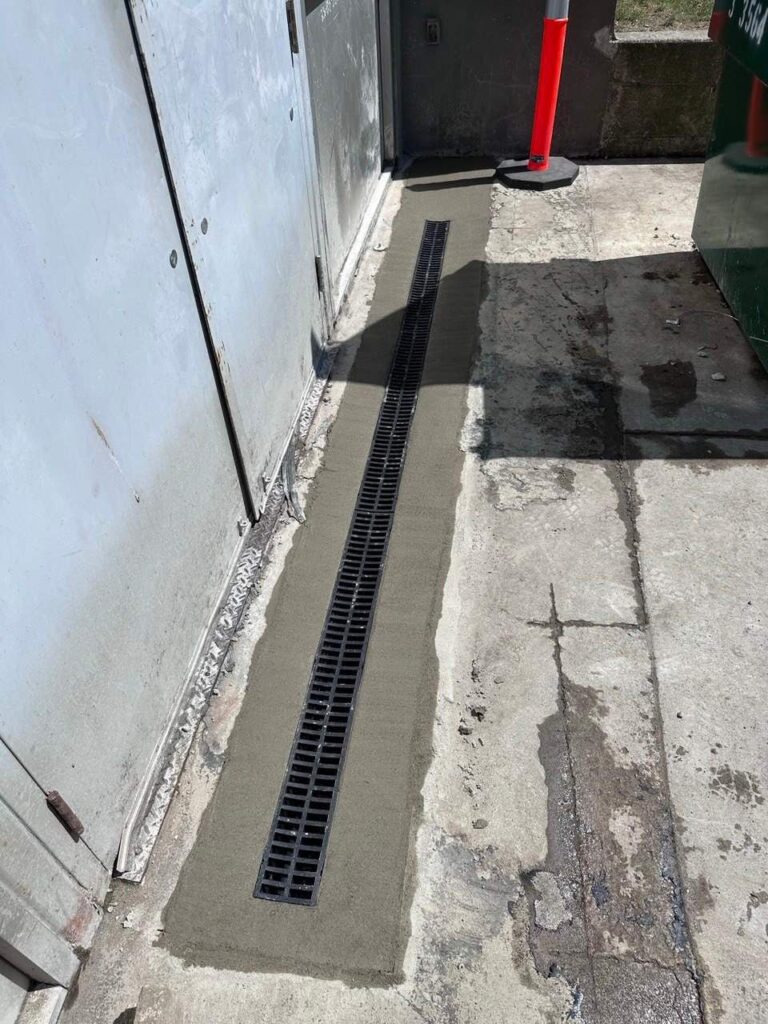

6. Installing the New Trench Drain
The installation steps included:
- Compact the gravel base level
- Assemble polymer‑concrete channel sections with sealant between joints
- Apply rebar reinforcement for structural support
- Check trench grade toward the catch basin
- Pour concrete around the channels using vibration to avoid gaps
Install ADA‑compliant, heel‑proof grates at flush grade
I walked the client through every step, highlighting how this new design would prevent future clogging and structural issues.
7. Catch Basin Installation
We installed a high‑capacity catch basin tied into the site storm system. Debris traps prevent material from entering the municipal sewer.
8. Testing and Commissioning
After the concrete cured, I tested the system thoroughly. Using power hose water, I flushed through the entire channel. The water ran clean and free to the outlet with no sign of leaks or backup.
I reminded the client that this is how a reliable water drainage company guarantees performance.
9. Site Cleanup and Maintenance Plan
After installation I cleaned up the site thoroughly, removing all debris and wiping down surfaces. I then provided the client with maintenance advice:
- Inspect the drain system quarterly
- Schedule a catch basin cleaning service to prevent future issue
- Train staff on keeping the trenches free of trash
These steps protect the investment and keep daily operations smooth.
10. Long‑Term Results
Here is what the client achieved:
- No more water pooling at the loading dock
- Safe and efficient trolley traffic
- A trench drain system built for heavy use and harsh Metro Vancouver weather
- Ongoing support and preventative schedule for years to come
That is the level of service you can expect from Vancouver Underground Drainage Experts, whether for commercial sites, strata buildings, luxury homes, or older properties.
Who We Serve in Metro Vancouver
Our services are tailored to a wide range of clients including:
- Homes in All Greater Vancouver and neighbors that require clean, discreet drainage design
- Older Character Homes in Kitsilano or East Van needing drainage upgrades without compromising aesthetics
- Strata Communities that depend on durable, shared drainage systems
- Commercial Clients like this Burnaby store where reliable drainage is essential to operations
Why Choose Vancouver Underground Drainage Experts
- We have deep local knowledge of soil types, municipal codes, and regional climate
- Our licensed technicians like me bring real‑world experience to every job
- We offer transparent estimates, photo documentation, and quality guarantees
- We manage every stage from camera inspection to trench drain replacement, concrete sump adaptation, and catch basin installation
- We provide ongoing support with maintenance advice and instructions
If you are dealing with water pooling, blocked drains, or outdated infrastructure, do not wait until it causes a bigger issue. Call me, Alex, today at 604‑359‑5022 or 1‑888‑quick‑80. I will help you design and install a drainage system that ensures safety, reliability, and peace of mind.
Book Alex today to schedule your site visit and get a full-service drainage solution.
We provide fast and professional service in:
Vancouver, West Vancouver, North Vancouver, Burnaby, Coquitlam (including Port Moody and Port Coquitlam), Richmond, New Westminster, Surrey, Chilliwack, and surrounding areas.
This Burnaby trench drain replacement is a real demonstration of what we do best at Vancouver Underground Drainage Experts. From the initial camera inspection to a complete trench drain replacement, catch basin installation, and thorough maintenance plan, I make sure every system works effectively and lasts long. When you need a reliable water drainage company in Metro Vancouver, call us and ask for Alex.
